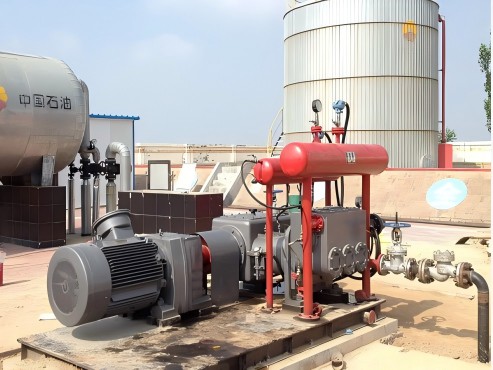

Twin‑Screw Multiphase Pump Skids
Full FAT factory tested multiphase pump skid for wellhead gathering , crude boosting and production fluid transportation
CME twin-screw multiphase pump skids are complete integrated boosting systems centered on heavy-duty twin-screw positive displacement pumps.
Fully designed and manufactured in strict accordance with API 676 industrial standards, the skid-mounted units feature excellent low-temperature resistance, adapting to extreme cold environments as low as -40°C. Capable of stably boosting unseparated wellstream mixtures containing oil, gas, water and sand with a gas volume fraction (GVF) up to 99%, the compact integrated skid structure eliminates the need for upstream oil and gas separation facilities. It effectively cuts down overall equipment investment, reduces site occupation area, and delivers cost-effective, high-reliability pumping solutions for both onshore and offshore oil and gas production projects.
Applicable Media
- Crude Oil & Waxy Crude
- Oil/Water/Gas Multi-phase Mixtures
- Produced Water
- Oil-Bearing Emulsions
- Sand-Containing Wellstream Fluids
Main Performance Range
| Main Performance Range | |
|---|---|
| Flow | 5~1200 m³/h (Custom engineered up to 2000 m³/h) |
| Discharge Pressure | 0-5.0Mpa (It can meet the higher pressure according to requirement) |
| Gas Volume Fraction | 0 ~ 98% |
| Operating Temperature | -20°C ~ +150°C |
| Viscosity Range | 1 ~ 100,000 cSt |
| Standard | API 676, ASME B31.3, ATEX Ex d IIB T6 |
Skid Configuration
- Main Pump Assembly
API 676 compliant heavy-duty twin-screw positive displacement pump with API 682 dual-end mechanical seals. Adopts double-suction rotor structure for automatic axial force balance. Equipped with hard-coated rotors and replaceable wear liners for sand-laden wellstream. Stably handles 0-99% GVF oil-gas-water-sand mixtures and supports -40°C extreme cold operation.
- Drive Unit
Explosion‑proof induction motor (Ex d IIB T4/T6), flexible coupling with safety guard. Variable‑Frequency Drive (VFD) for speed adjustment to match fluctuating well‑stream flow rates. Optional diesel engine drive for sites without stable power supply.
- Centralized Lubrication System
Lubrication oil station, oil filter, oil cooler, pressure/temperature transmitters, low‑oil‑pressure interlock protection for timing gears and bearing assemblies.
- Process Piping, Valves & Instrumentation
Full‑set skid‑mounted process piping, ANSI B16.5 flanges, isolation valves, check valves, safety relief valve, bypass loop. Instruments include suction/discharge pressure transmitters, temperature sensors, multiphase flow transmitter, pressure gauges, local indicator panels. Over‑pressure protection and emergency vent assembly included.
- Skid Base Frame
Heavy‑duty welded steel common base frame, integral drip‑tray, multiple lifting lugs for hoisting. Epoxy anti‑corrosion coating for on‑shore and offshore environment.
- PLC & HMI Control System
Explosion‑proof local control cabinet with PLC and HMI. Real‑time monitoring of pressure, temperature, vibration and motor operating parameters. Functions include auto‑start‑stop, fault alarm, interlock protection, emergency stop. Support DCS remote signal interface for central control‑room integration. Unattended operation available.
- Auxiliary Heating System (‑40 °C Low‑Temperature Version)
Electrical trace heating for pump casing, seal‑oil circuit, piping and instrument cabinets, together with thermal insulation layers for stable operation under extreme cold ambient conditions.
- Optional Accessories
Inlet Y‑type filter, suction scrubber module, vibration monitoring sensors, offshore‑grade corrosion protection, local test ports.
Core Advantages
- Stable operation with Gas Volume Fraction(GVF) 0~95%
- Wide viscosity adaptability: 1 ~ 100 ,000 cSt crude & emulsions
- Timing gear non-contact rotor design , low fluid shear
- Powerful self-priming performance , suitable for wellhead gathering
- ATEX explosion-proof PLC touchscreen control system optional
