Solar Power Systems
CME supplies auxiliary solar power solutions engineered for the harsh, off-grid conditions of oil, gas, and mining operations, including arid deserts, Arctic tundra, and high-altitude drilling sites. Our integrated PV systems serve as reliable supplementary or standby power for instrumentation, camp facilities, metering stations, and low-duty process loads, reducing fuel consumption and eliminating unplanned downtime.
We deliver field-proven, industrial-grade solar products tailored to remote energy needs, including:
- PV Modules & Arrays (Anti-PID, Sand-Resistant)
- Hybrid Inverter (PV + Genset Sync, Built-in MPPT)
- Lithium-ion Battery Bank (LiFePO₄) + BMS
- DC Combiner Box (with SPD & String Fuses)
- Smart PV Cleaning Robots

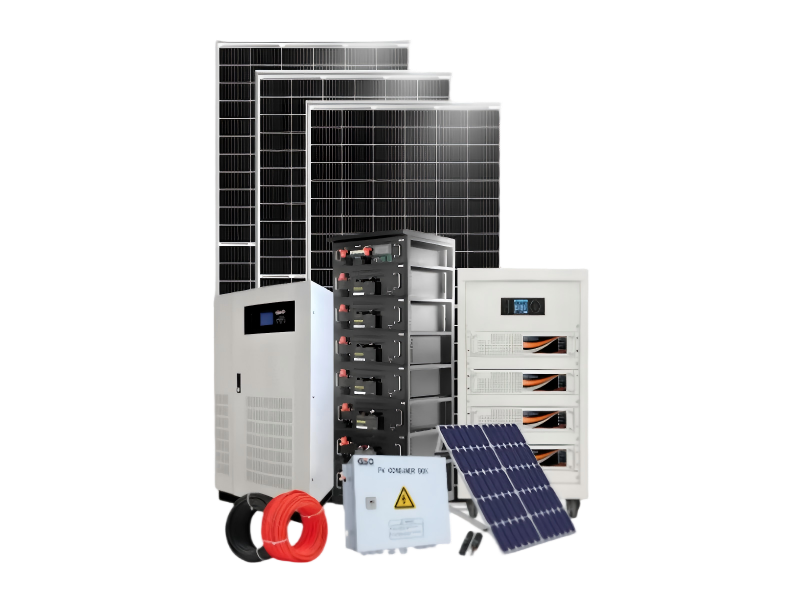

On-grid & Off-grid Solar Power Systems
CME delivers high-performance photovoltaic (PV) solutions for reliable primary or supplementary power in demanding environments, from remote oilfields to grid-connected facilities. Our integrated systems reduce energy costs and ensure operational continuity.
Our turnkey packages feature robust, pre-engineered components:
1. Solar Modules (PV Panels)
High-efficiency, industrial-grade panels built for harsh conditions.
- Power: 550–750W
- Efficiency: ≥22.5%
- Cell Technology: N‑type TOPCon, anti‑PID, anti‑LeTID, low temperature coefficient
- Operating Temp Range: −40℃ ~ +85℃
- Mechanical Load: Front 5400 Pa / Rear 2400 Pa
- Frame & Glass: Anodized aluminum frame, 3.2mm tempered high‑transmittance glass
- Certifications: IEC 61215, IEC 61730, IEC 60068‑2‑14 (salt mist), ammonia, sand abrasion; PID/LeTID free
- Warranty: 12‑year product / 25‑year linear power
2. PV Inverters (Off-Grid / Grid-Tied / Hybrid)
Intelligent core for stable power conversion and compliance.
- Range: 50–500 kW (1/3-phase)
- Grid-Tied: 1100/1500V DC input, ≥98.8% efficiency, IEEE/VDE compliant
- Off-Grid/Hybrid: Pure sine wave, 48–1000V battery support, <10ms transfer time
3. Energy Storage Unit (Battery Bank)
LFP-based scalable storage for continuous power.
- Chemistry: LiFePO4 (LFP)
- Usable Capacity: 20 kWh – 5 MWh (modular, scalable)
- Nominal Voltage: 51.2 V (module) / 300 – 800 V (HV string)
- Cycle Life: ≥6000 cycles @ 80% DOD
- BMS: Integrated cell balancing & multi-level protection

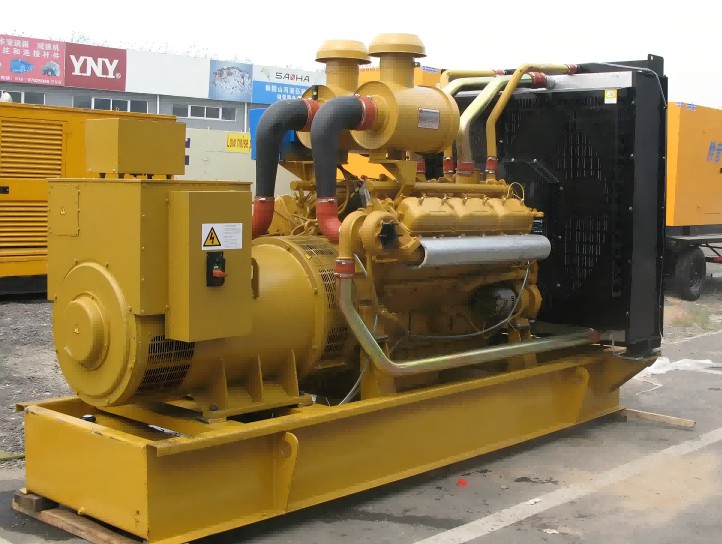

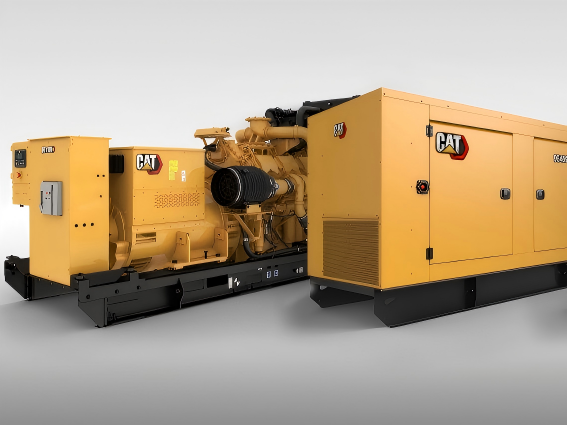

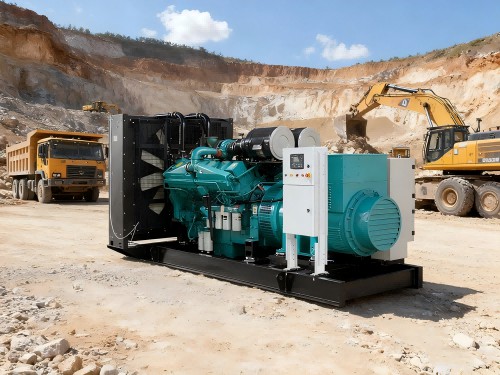

Diesel Generator Set
CME's diesel generator sets are engineered to deliver reliable prime or standby power in the most demanding and remote oilfield environments. As a cornerstone of our integrated power solutions, they are designed to meet the critical need for a stable, on-demand energy source where grid power is unavailable, unreliable, or insufficient.
Our range encompasses both robust stationary units and highly mobile, containerized power stations, built for 24/7 operation under extreme conditions.
Core Features & Performance Specifications:
Power Range: 20 kVA to 3000 kVA, built with heavy-duty industrial engines (Cummins, Volvo Penta, MTU, and leading China manufacturers) for durability and fuel efficiency.
- Intelligent Control: Microprocessor-based panels enable automatic operation, remote monitoring, and multi-unit synchronization for seamless power management.

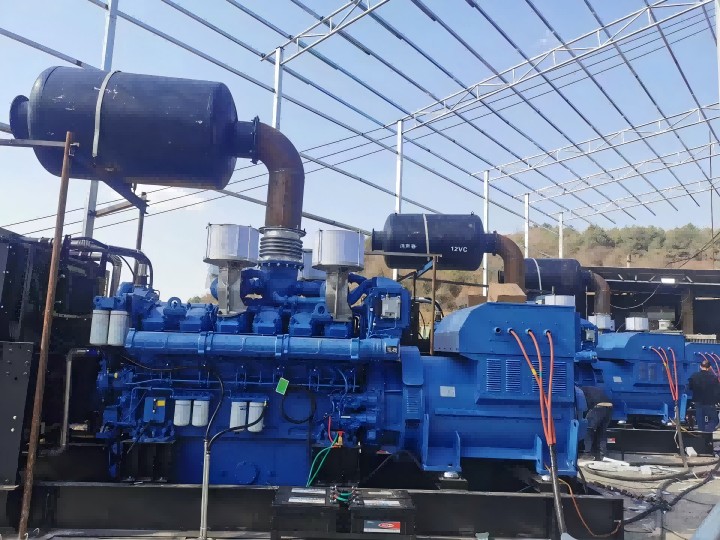

- Emissions Compliance: Designed to meet EPA Tier 4 Final / EU Stage V standards, utilizing advanced after-treatment for cleaner operation.
- Robust Enclosures: Available in open, sound-attenuated (≥75 dB(A)), or ISO containerized configurations for maximum mobility, protection, and rapid deployment.
