Solids Control Spare Parts

OEM Interchangeable for Derrick, Swaco & Brandt

Optimize your drilling fluid processing with CME solid control parts.

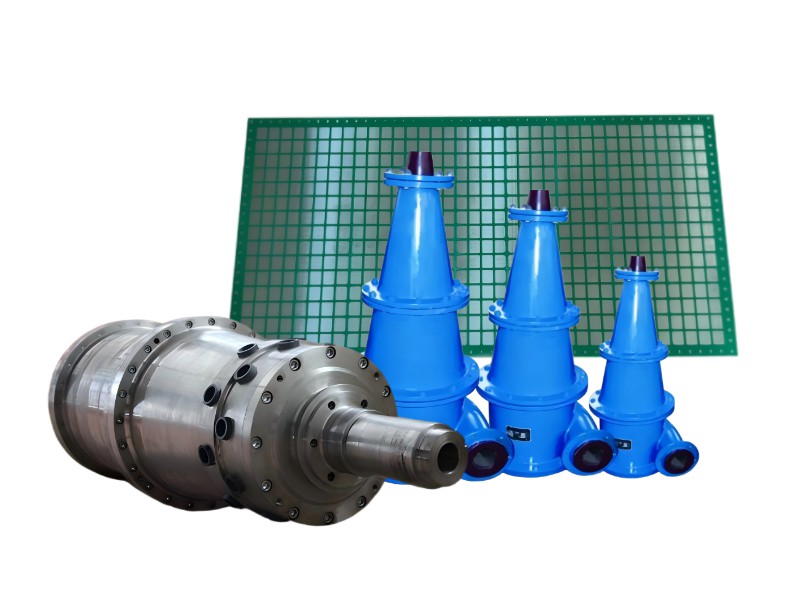

We supply high-performance shaker screens, centrifuge components, hydrocyclones and sand pumps designed to fit major OEM equipment, ensuring efficient cuttings separation and fluid recovery. Compatible with Derrick, Swaco, Brandt and Kemtron equipment.

Featuring a 5-year stable inventory, our parts act as an affordable OEM replacement that delivers consistent separation efficiency and extended screen/service life for onshore and offshore drilling operations.

Also available:

[Mud Pump Spares for EMSCO, GD & National] and

[Frac & Acidizing Pump Spares for SPM QEM & Halliburton HT].

Key Advantages

1.Full Industry Interchangeability:

Derrick (DP 600/700/800, Hyperpool)
Swaco (MD-2, MD-3, GXL series)
Brandt (King Cobra, VSM 300)
Kemtron (28GT, 48GT)
Other manufacturers

2. Screen Compatibility: Hook strip, frame, and composite screens fit Derrick, Swaco, and Brandt shakers.

3. Centrifuge Replication: Bowls and scrolls reverse-engineered to OEM drawings for perfect fit.

4. API / ISO Compliance: Screens and centrifuge rotating parts manufactured to API Q1 / ISO 9001 controlled processes; shaker screens mesh-certified per API RP 13C.

5. 5-Year Stock: High-consumption items (hook strip screens, composite frames, hydrocyclone inserts, centrifuge bearings) maintained in factory for immediate dispatch.

API Q1 Certified Solid Control Parts - CME Interchangeable for Derrick DP and Swaco MD

Can't Find Your Exact Part?

Please identify the parts you need from the 【Solids Control System Parts List】 provided below.

Alternatively, send us your OEM brand, pump/part name, model, and original part number — our engineers will cross-reference within 24 h and quote accordingly.

Email: sales@cmecn.com | WhatsApp: +86 182 2980 0688

Request Cross-Reference

Solid Control System Parts List
Main Benchmark OEMs: Derrick (Hyperpool / DP Series), Swaco (MD / GXL Series), Brandt (King Cobra / VSM 300), Kemtron
Part Name	Interchangeability Level	Applicable Scope	Material Specification	Remarks

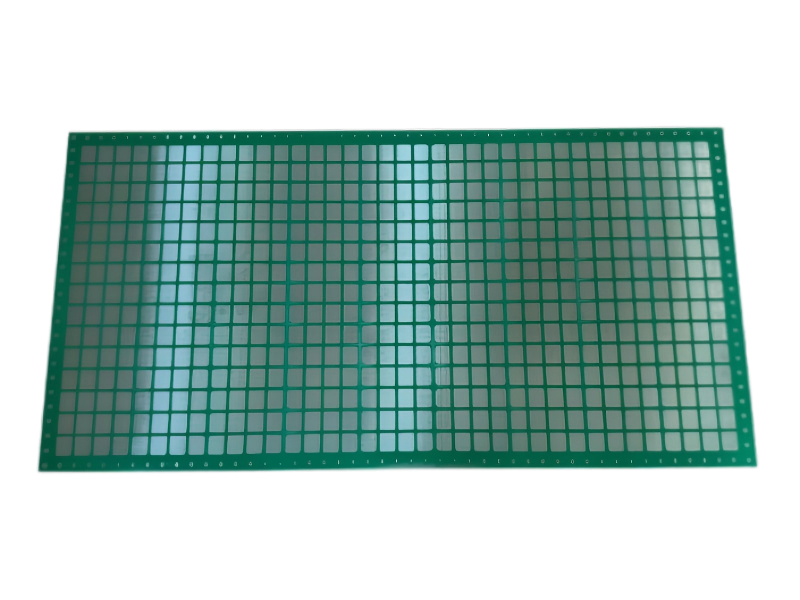

Shale Shaker Screen (Hook Strip / Frame / Composite)	Full Industry Interchangeable	Derrick DP 600/700/800, Swaco MD-2/3, Brandt Cobra, Kemtron 28/48	Stainless Steel Wire + Polyurethane Hook Edge / Composite Frame	Interchangeable by mesh count (API 20-400) + dimensions (1040×700 / 1250×630, etc.), hook edge style and tension hole positions must be consistent with the original manufacturer
Screen Tensioning Device (Tension Bolt / Pressure Plate / Spring)	Full Industry Interchangeable	Universal for screens of the same specification	Galvanized Carbon Steel / Spring Steel	Standard interface dimensions are universal
Vibration Motor (Benchmarked with Oli / Martin / Italvibras)	Full Industry Interchangeable	Universal for all brands of shale shakers	Cast Aluminum / Cast Iron	Selected by excitation force (kN) and speed (rpm), standard installation dimensions are universal
Desander Desilter Hydrocyclone (Hydrocyclone 4"/5"/10")	Full Industry Interchangeable	Derrick / Swaco / Brandt / Kemtron	Polyurethane / Ceramic Liner	Standard interface dimensions (inlet / overflow / underflow) are universal, selected by separation particle size
Hydrocyclone Feed Hose / Clamp / Gasket	Full Industry Interchangeable	Universal for all brands of hydrocyclones	Polyurethane / Rubber / Stainless Steel	Standard interface dimensions are universal
Centrifuge Differential (Planetary Gearbox)	Same Model Interchangeable	Same grade as Derrick D-500 / Swaco 518/726	Alloy Steel	Only interchangeable for the same model, not cross-brand
Centrifuge Scroll (Helical Blade)	Same Model Replicable	Derrick / Swaco / Brandt	Carbon Steel + Hard Alloy Overlay / Stainless Steel	Original manufacturer drawing number is required, wear-resistant overlay thickness must comply with original manufacturer standards
Centrifuge Bowl	Same Model Replicable	Derrick / Swaco / Brandt	Duplex Steel / 316L	Original manufacturer drawing number is required, major/minor end diameter, taper, and slag outlet dimensions must be completely consistent
Centrifuge Bearing (SKF/FAG)	Full Industry Interchangeable	Universal for all brands of centrifuges	ISO Standard	Can be purchased by original manufacturer bearing number
Centrifuge Feed Tube / Differential Oil Seal	Same Model Interchangeable	Same brand and same model	FKM / PTFE	Only interchangeable for the same model
Degasser Impeller / Vacuum Pump Assembly	Same Model Replicable	Universal for all brands of degassers	Stainless Steel / Cast Iron	Original manufacturer drawing number is required
Sand Pump Impeller / Casing (Centrifugal Sand Pump)	Same Model Replicable	Universal for all brands of solid control sand pumps (commonly matched with 6×5 / 8×6)	Cr13 / Duplex Steel	Original manufacturer drawing number is required, similar to API 610 but with different working conditions (sand-containing)
Agitator Gearbox / Impeller	Same Model Interchangeable	Universal for all brands of mud tank agitators	Cast Iron / Cr13	Only interchangeable for the same model, selected by power (kW)
Mud Gun / Mixing Hopper	Same Configuration Interchangeable	Universal for all brands of solid control systems	Carbon Steel / Polyurethane Lining	Universal when selected by caliber (inch) and pressure (MPa)
