Stimulation Pump Skids

CME Skid-Mounted Equipment Factory specializes in the design and manufacture of professional, customized pumping system skids & workover equipment for oil and gas applications. In strict compliance with ISO and API Q1 quality management systems, all our skid-mounted products are designed and manufactured according to API and other internationally recognized standards.

Our product portfolio includes fracturing, acidizing skid-mounted systems, as well as well workover equipment, which have been widely deployed in oil and gas fields across the world.

CSZ Series Triplex Plunger Pumps

The triplex plunger pump adopts a horizontal triplex single-acting reciprocating structure. Its core consists of a power end (crankshaft, connecting rod, crosshead), a hydraulic end (pump head, plunger, valve group) and a lubrication system; the crankshaft cranks are evenly distributed at 120°, and stable fluid delivery is achieved through the alternating reciprocating movement of the plungers.

Core Features:

Mature and reliable structure, universal spare parts, and convenient maintenance
Suitable for medium and high pressure; maximum medium pressure up to 50MPa, maximum high pressure up to 105MPa, maximum medium pressure displacement up to 100m³/h, meeting the needs of deep well fracturing and conventional water injection
Capable of transporting clean water, sewage, fracturing fluid, acid fluid, etc., and resistant to medium wear
Outstanding cost performance

CSZ Series Triplex Plunger Pump - Horizontal Single-Acting Reciprocating

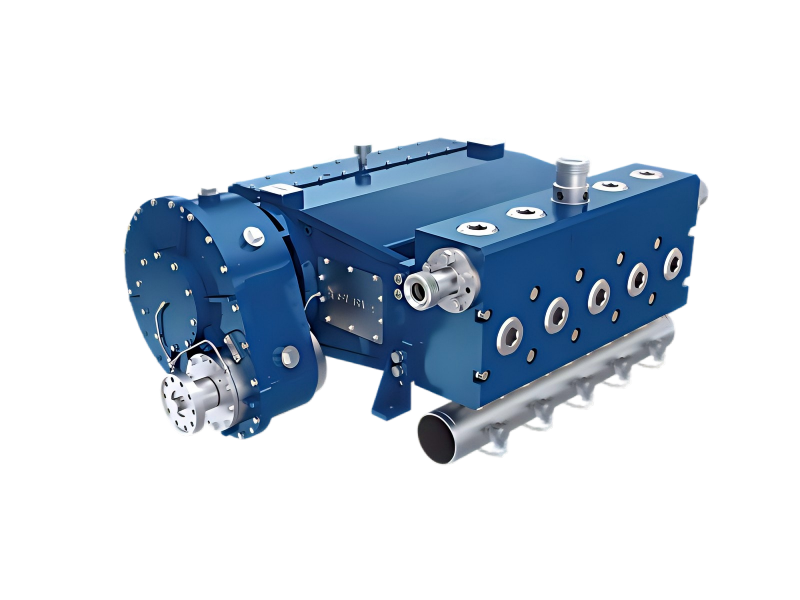

CWZ Series Quintuplex Plunger Pump for High-Pressure Applications

CWZ Series Quintuplex Plunger Pumps

The power end of the quintuplex plunger pump includes an integrated crankcase, a five-crank crankshaft, connecting rods and other components, and the hydraulic end inherits the design of the triplex pump but with higher strength; the crank offset angle is 72°, and the coordinated work of multiple cylinders greatly improves the continuity of fluid output.

Core Features:

Outstanding high-pressure performance: maximum working pressure up to 105MPa, power range 2400-3000 HP, maximum flow rate up to 36.7 BPM (barrels per minute), meeting the needs of large-scale sand fracturing
72° crank offset angle ensures uniform plunger phase, with pressure fluctuation only 8%, which can be reduced to 3% after equipping with an efficient air chamber
Compact structure, lighter weight and convenient transition
High durability and easy maintenance

CYLQ Series Frac Pump Skids

CME Frac Pump Skid is suitable for all kinds of fracturing operations in deep and medium oil and gas wells. They can be used for hydraulic fracturing, acid fracturing, high pressure fluid pumping, pressure testing, etc.

Engine：CAT / Cummins / WEICHAI 1050 - 2500HP
Transmission: Allison 9826 OFS or CAT TH55
Max. discharge pressure: 123.8 (17,950 PSI)
Max. discharge rate: 2.78 m³/min (TPA 600 5 1/2”)
*Trailer-mounted optional

For more details, please contact our professional sales engineers >

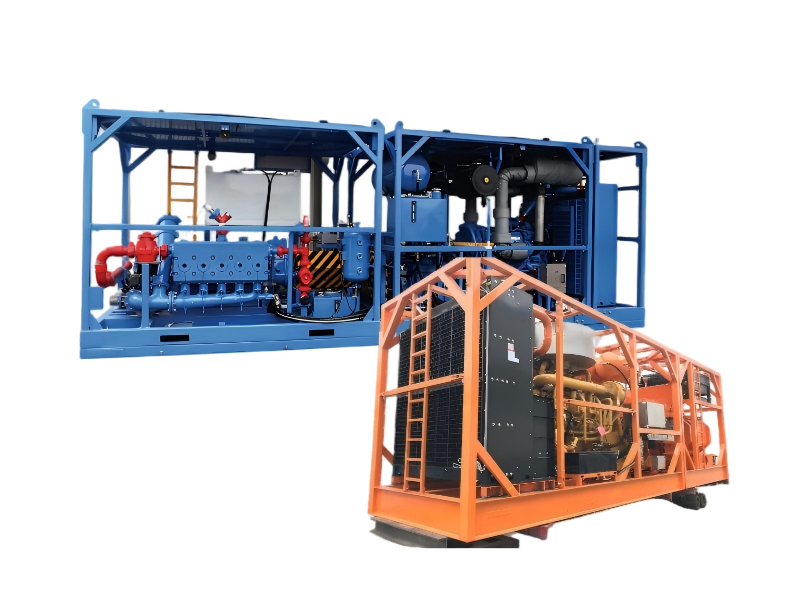

CYLQ Series Frac Pump Skid for Hydraulic Fracturing and Acid Fracturing

CSHQ Series Acidizing Pump Skid for Well Acidizing and Blockage Removal

CSHQ Series Acidizing Pump Skids

CME Acidizing Pump Skid is used for well acidizing, fracturing, well washing, blockage removing, etc. It is powered by the engine to drive the TPC600 plunger pump via 4700 transmission and drive shaft and the centrifugal pump via PTO.

IoT (Internet of things)
DAS system
Both integrated and divided layout designs can be offered
Manifolds and valves are made of anti-corrosion materials, which can be resistant to 35% hydrochloric acid
SPS non-leakage packing
Diesel fired coolant pre-heat system available for option. The heater allows the engine to be preheated before starting without the use of external power.
*Trailer-mounted optional

For more details, please contact our professional sales engineers >

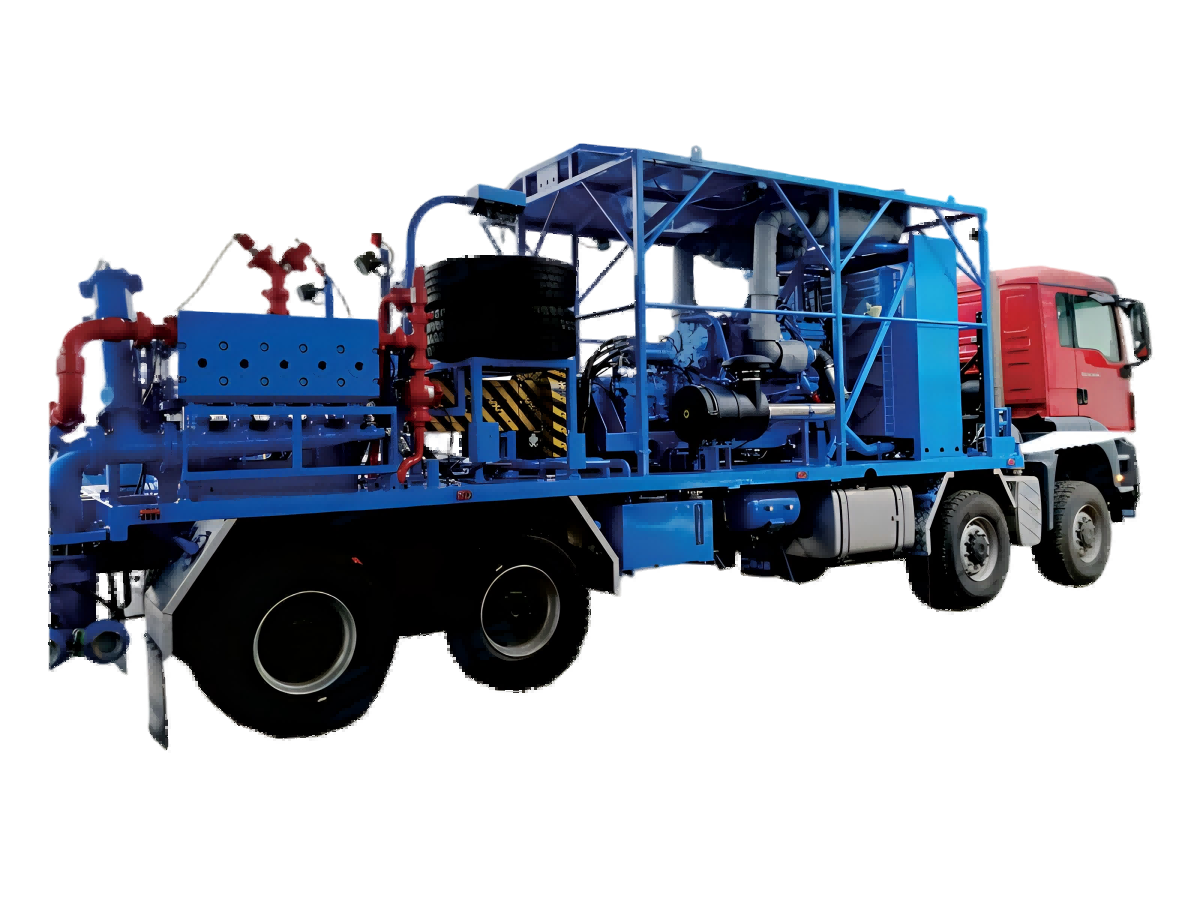

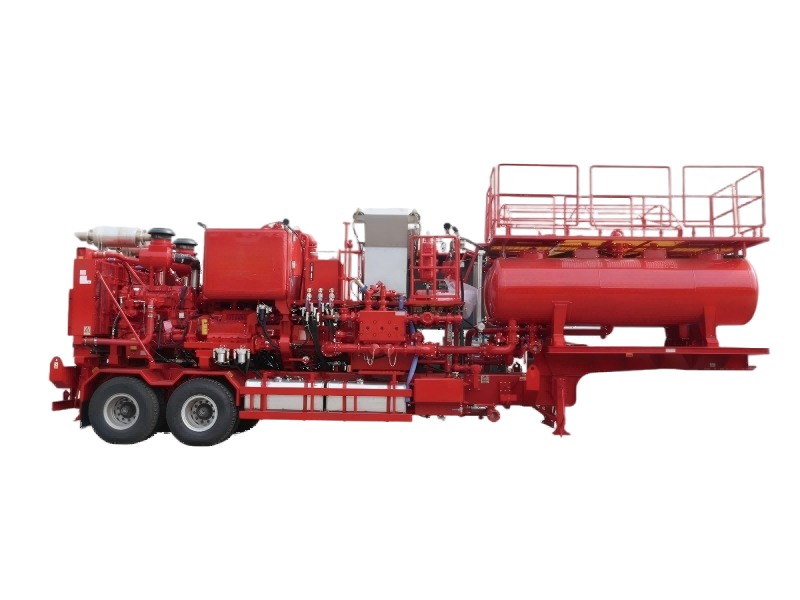

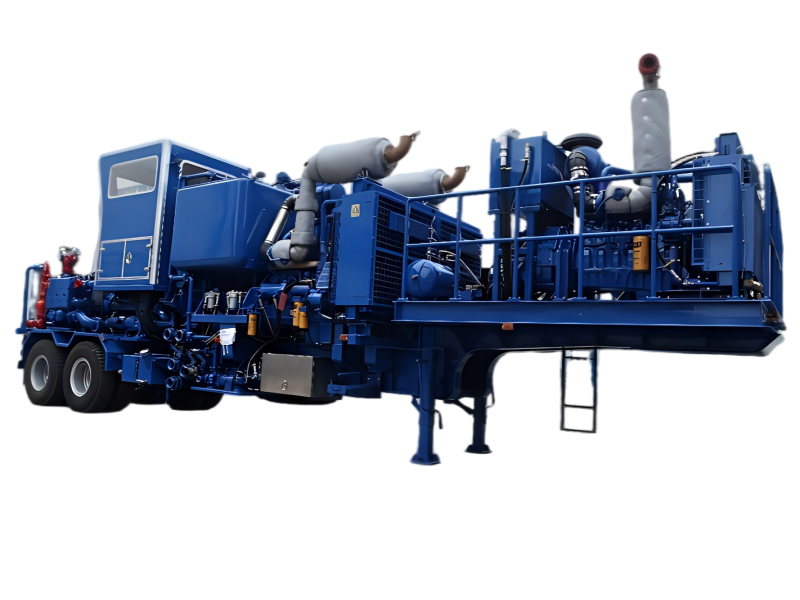

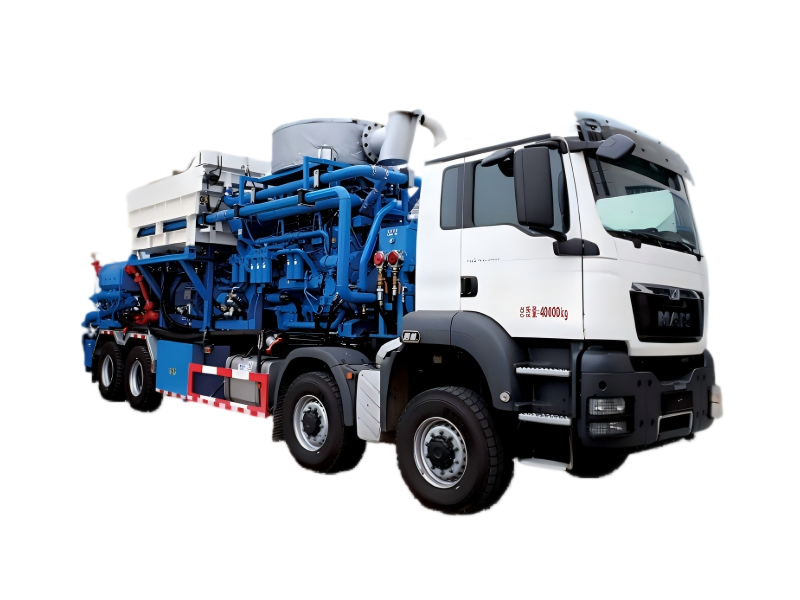

Trailer-Mounted & Vehicle-Mounted Series

Why Choose Us

Customized design based on on-site parameters, with complete modular skid-mounted system solutions.
Core components including pump bodies, valve seats, power units and control systems use branded parts to ensure stable and reliable system performance.

High-strength steel frame with anti-corrosion coating, suitable for harsh oilfield environments, durable structure and low maintenance cost.
Energy-efficient design with up to 60% spare parts commonality, effectively reducing full life-cycle costs.
All equipment fully complies with API standards.
Reliable after-sales service and sufficient spare parts supply.
