Preface
Recently, we (CME CHINA) have been busy with the customized design, production, testing, and delivery of numerous drilling mud pump orders from countries such as Costa Rica, Australia, Oman, Kazakhstan, and Iraq. Our skid-mounted equipment factory is located within the Zhongyuan Oilfield in China, leveraging extensive field experience and unique advantages in the oil and gas equipment skidding sector. In response to recent high demand and client inquiries, we are publishing this article to share insights.
In various fields such as oil and gas exploration and development, coalbed methane extraction, geothermal drilling, and even mine rescue operations, drilling is the primary and crucial step to access subsurface resources. The mud pump, acting as the 'heart' of the drilling circulation system, directly impacts drilling efficiency, downhole safety, and operational costs through its stable and efficient operation. At remote sites beyond grid coverage—be it deserts, offshore platforms, or rapidly moving operations—a highly integrated, self-powered, and rapidly deployable solution becomes essential: the Skid-Mounted Diesel Engine-Driven Drilling Mud Pump System Package. It is not merely a combination of power and function but a cornerstone of modern, efficient drilling operations.
1. Core Components: The Trinity Power Unit
A complete skid-mounted diesel engine-driven mud pump system is essentially a highly integrated assembly of three core functional modules mounted on one or several robust steel skids, forming an independent, fully functional 'power plant.'
1). Power Source: High-Power Diesel Engine
◦ This is the energy origin of the entire system. Heavy-duty industrial diesel engines known for technological maturity, high reliability, and substantial torque reserve are typically selected. Their power range can span from hundreds to thousands of horsepower, meeting the stringent demands for mud flow rate and pressure in drilling operations of varying depths and hole diameters. Modern models commonly employ electronic injection technology and turbocharging with intercooling, aiming for superior fuel economy and lower emissions while ensuring robust power output.
2). Power Transmission and Conversion: The Drive System
◦ The rotational power from the engine must be transmitted to the mud pump efficiently and reliably. Common transmission methods include:
■ Hydrodynamic Drive (Fluid Coupling or Torque Converter): Provides smooth starting and overload protection, isolates vibration, and is particularly suitable for conditions requiring frequent starts/stops or severe load fluctuations.
■ Mechanical Drive (Clutch and Gearbox): Features a compact structure and high transmission efficiency. Multi-gear output via a transmission allows for fine-tuning to match pump strokes.
■ Hybrid Drive: Combines the advantages of both for superior performance control.
3). System Core: The Drilling Mud Pump

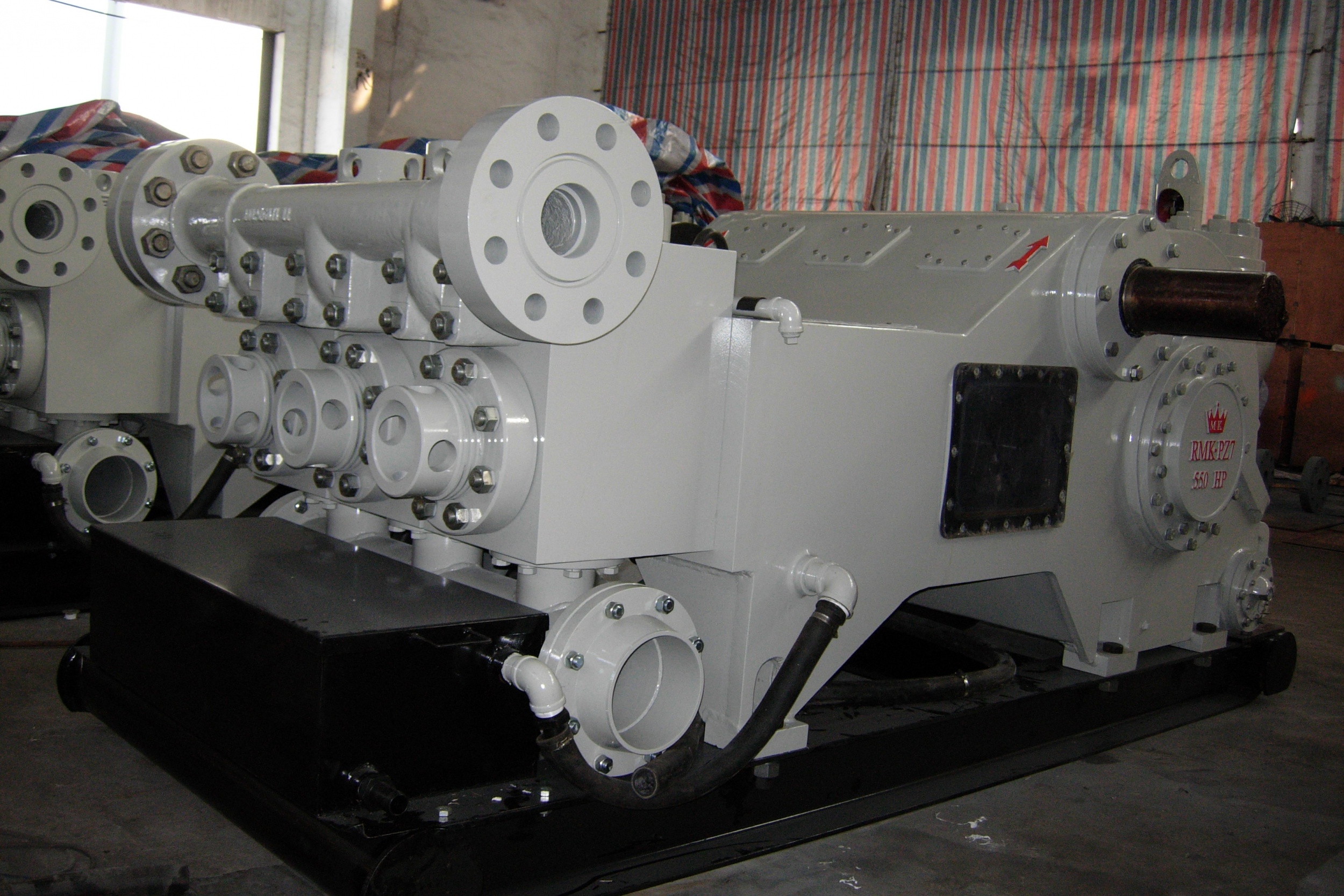

◦ Typically a horizontal triplex or quintuplex single-acting piston pump (commonly referred to as a 'slush pump' in the industry). It converts mechanical energy into hydraulic energy, delivering high-pressure drilling fluid downhole to perform critical tasks such as cuttings transport, bit cooling, and formation pressure balance. The pump's power, maximum flow rate, and rated pressure are its core performance metrics. Skid-mounted design ensures the pump is rigidly and precisely aligned with the power base, minimizing vibration.
2. High Integration: The Essence of Skid-Mounted Design
'Skid-mounting' is far more than simple equipment assembly; it embodies systematic engineering thinking and lean principles.
• Space Efficiency and Integrated Transport: All major equipment, manifolds (suction and discharge high-pressure manifolds), and auxiliary systems (e.g., cooling, pre-lubrication, fuel systems) are compactly arranged on a single or a few skid bases. This significantly reduces on-site installation workload, footprint, and connection errors. The package can be transported as a whole via flatbed trucks or vessels, enabling 'plug-and-play' readiness.
• Modular Design: Advanced skid-mounted systems adopt a modular philosophy, with relatively independent modules like the power module, pump module, and control module. This facilitates maintenance, upgrades, and allows flexible configuration of different engine and pump combinations based on operational needs.
• Structural Reinforcement: The skid base is constructed from high-strength steel and optimized through Finite Element Analysis (FEA). It can withstand transportation shocks and the massive reciprocating inertial forces and torque generated during operation, ensuring structural integrity over long-term service.
• Auxiliary System Integration: Auxiliary equipment such as radiators, air filters, silencers, batteries, and hydraulic power units (if required) are typically integrated, forming a genuine 'turnkey' power package.
3. Intelligent Control: The Modern Brain and Nervous System
Modern diesel-driven mud pump skids have fully evolved towards intelligence and automation.
• Integrated Control System: The core lies in the coordinated control of the engine, drive, and pump. Through a PLC or dedicated controller, functions like one-button start/stop, stepless speed/pump stroke adjustment, and real-time monitoring/display of operational parameters (oil pressure, water temperature, discharge pressure, flow rate) are achieved.
• Protection and Alerting: The system is equipped with multi-level safety protections, such as engine overspeed, low oil pressure, high coolant temperature protection, and mud pump overpressure protection. Upon detection of abnormal parameters, it automatically reduces speed or shuts down while triggering audible and visual alarms, safeguarding both equipment and downhole safety.
• Remote Monitoring and Data Interface: Key data can be transmitted to the driller's cabin or a remote monitoring center via protocols like CAN bus or Modbus. This enables centralized monitoring and data analysis, supporting predictive maintenance and operational optimization.
4. Core Advantages: Why It's the Preferred Choice?
1). Excellent Independence and Mobility: Frees operations from reliance on a fixed power grid, making it the preferred choice for any remote or newly opened operational area—the vanguard of exploration.
2). Rapid Deployment and Commissioning: Dramatically shortens rig site construction time, reduces the complexity and time cost of on-site assembly and commissioning, and significantly improves asset turnover efficiency.
3). Reliable Power Performance: Diesel engines offer excellent load response characteristics and strong overload capacity, effectively handling pressure fluctuations in the circulating system during drilling.
4). Optimized Total Cost of Ownership (TCO): While fuel costs are a factor, its advantages in reducing installation costs, labor costs, and non-productive time, coupled with flexibility in equipment residual value and reusability, make its lifecycle cost highly competitive.
5). Challenges, Development Trends, and Future Outlook
• Challenges: Primarily include managing fuel consumption and carbon emissions, controlling operational noise, maintaining performance in extreme environments (extreme cold, heat, high altitude), and meeting long-term maintenance support requirements.
• Development Trends:
◦ Greening: Adoption of Tier 4 Final or higher emission standard engines, exploration of biodiesel applications, and hybrid power modes like 'diesel + energy storage' or 'diesel + grid power' to reduce fuel consumption and emissions.
◦ Intelligence and Digitalization: Deep integration with the Internet of Things (IoT) to enable performance prediction, Prognostics and Health Management (PHM), and remote fault diagnosis based on big data.
◦ Ultimate Reliability: Further enhancement of core component lifespan through advancements in material science and design optimization, adapting to longer rig standby periods and more demanding continuous operation requirements.
Conclusion
The skid-mounted diesel engine-driven drilling mud pump system package plays an irreplaceable role in modern drilling engineering due to its powerful self-contained power, exceptional mobility and flexibility, and the engineering intelligence of high integration. It is not merely a mechanical assembly converting diesel fuel into high-pressure mud power but a key platform propelling drilling operations towards greater efficiency, intelligence, and adaptability to complex environments. As technology continues to evolve, this 'mobile heart' will persistently provide the strong and reliable driving force for humanity's quest to explore subterranean resources.
